Retriever

Do it all, modern, full suspension trail bike

An efficient mid-travel full-suspension mountain bike that balances lightweight climbing performance with confident, controlled handling on technical descents.

With the purchase of any complete Retriever bike, we will include a FOX 36 SL Factory fork at No Charge!

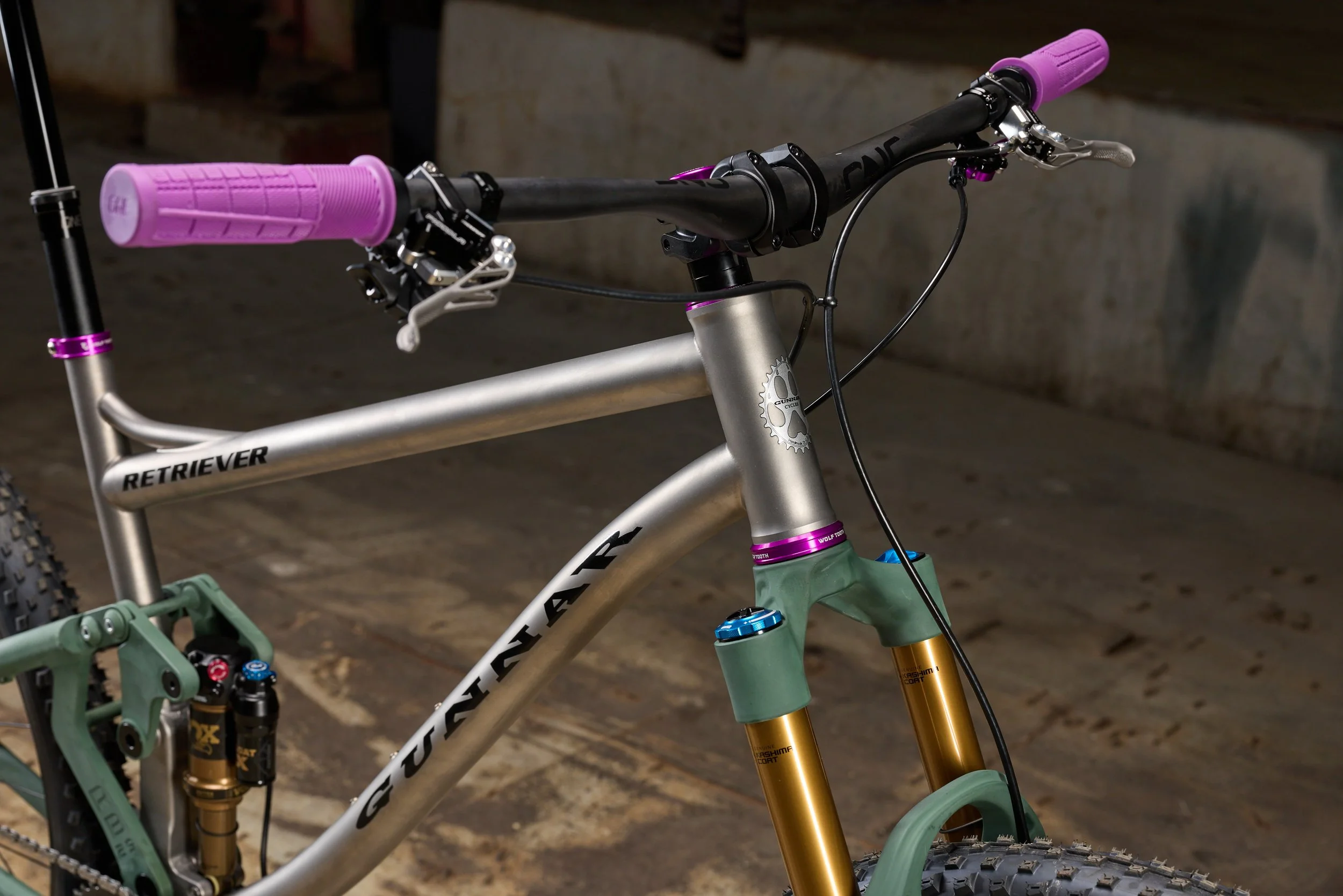

Close-up of a mountain bike's front section, showing purple handlebar grips, black handlebars, a silver frame, and gold front suspension forks.

Retriever Frame Features

  • Retriever Frame Only:

    • Titanium Front, Aluminum Rear Triangle - $4800

    • Stainless Steel Front, Aluminum Rear Triangle - Coming in 2027

  • Stock Geometries: Custom geometry available upon request

  • Fork Travel: Optimized around 140mm travel

  • Tire Clearance: 29×2.6mm

  • Headtube: 44mm straight. Designed for ZS44/EC44 headsets

  • Seatpost: 31.6mm Diameter. Internal dropper post routing

  • Bottom Bracket: T47 × 92 width

  • Rear Travel: Progressive linkage System with 135mm of travel. Hardware, linkage & swingarm are all Made in USA

  • Rear Shock: FOX Float X Factory, included

  • Rear Spacing: 12×148 Boost MTN. UDH compatible

  • Rear Brake: Post-mount disc. Designed to accept 180mm rotor

  • Chainstay Length: 445mm

  • Cable Routing: Internal mechanical or wireless downtube shift routing. Internal downtube brake routing. External rear triangle with zip guides on chainstays

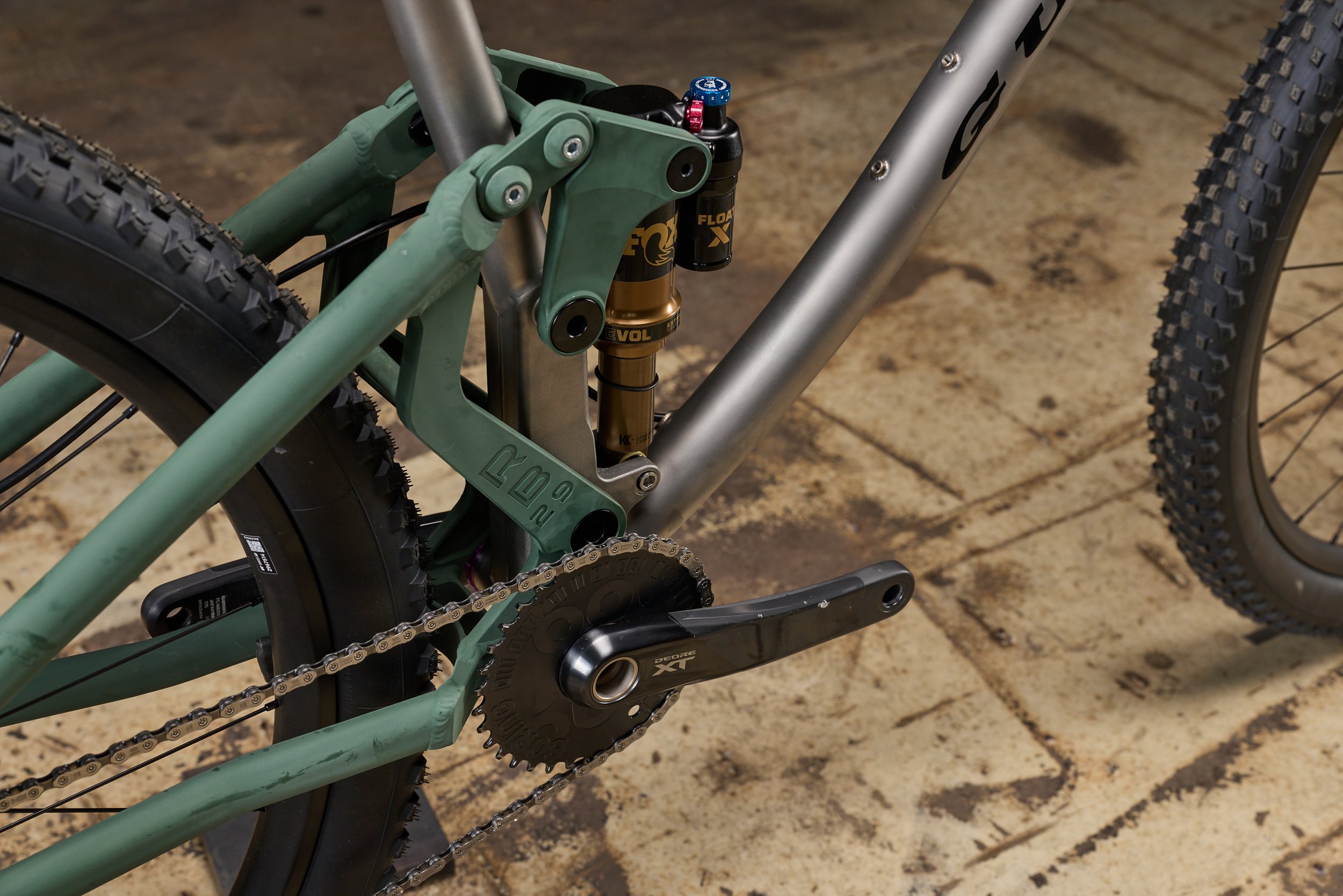

Close-up of a mountain bike's rear suspension system, chainring, and part of the frame on a tiled floor.

Frame Finish & Additional Options

  • Frame Finish:

    • Ceramic bead blast with vinyl logos. Cerakoted rear swingarm in the color of your choosing.

    • Custom Paint: Quoted upon request

  • Additional Options

    • Double-Butted Tube Set

    • Fully Integrated (Hidden) Cable Routing

    • Extra H20 Mounts

    • Bento Box (Top Tube) Mounts

* Options at additional cost.

Geometry

Order Process

Ready to lock in your next ride? Fill out the form below and submit it. We'll contact you soon to complete step 2!
